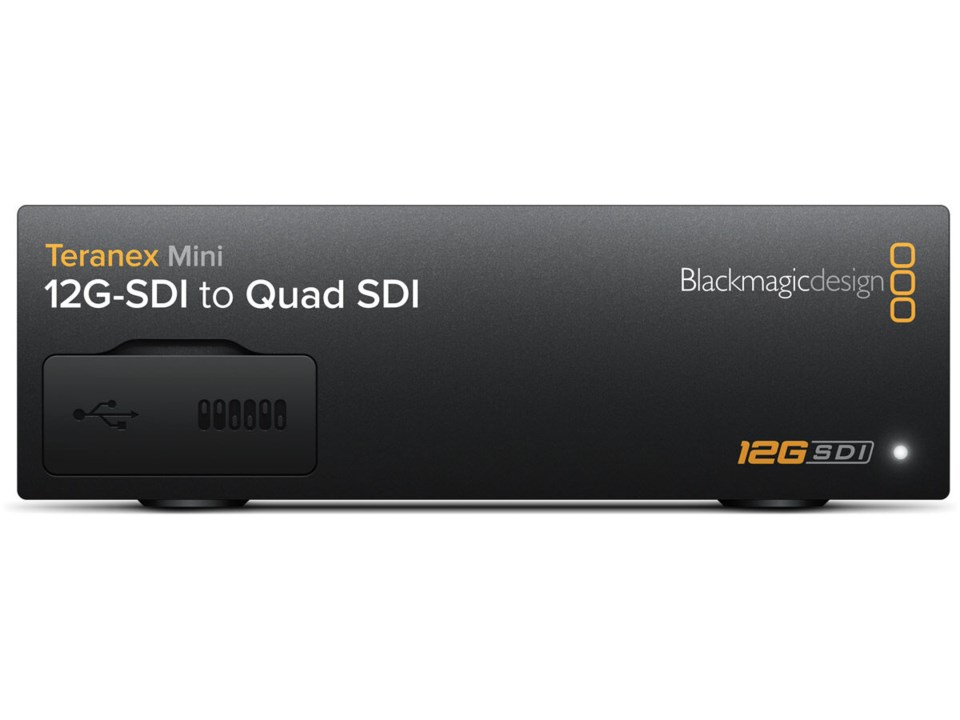

Blackmagic Design Teranex mini - 12G-SDI til Quad SDI
Teranex mini - 12G-SDI til Quad SDI
Gir deg mulighetene til å konvertere 12G-SDI til Quad Link SDI så du kan kople 12G- SDI Ultra HD utstyr til Quad Link Ultra HD utstyr. Du kan også dele Ultra HD SDI til fire separate HD SDI-utganger. Enheten veksler automatisk mellom SD, HD, 2K og 4K.
Tilkoplinger
SDI Video Input
1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Output
4 x 3G-SDI outputs
Standardformat
SD Format Support
525/29.97 NTSC, 625/25 PAL
HD Format Support
720p50, 59.94, 60
1080i50, 59.94, 60
Ultra HD Format Support
2160p23.98, 24, 25, 29.97, 30, 50, 60
4K Format Support
2160p23.98, 24, 25, 29.97, 30.
SDI signaler
SDI Video Rates
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Space
YUV & RGB
